Seco

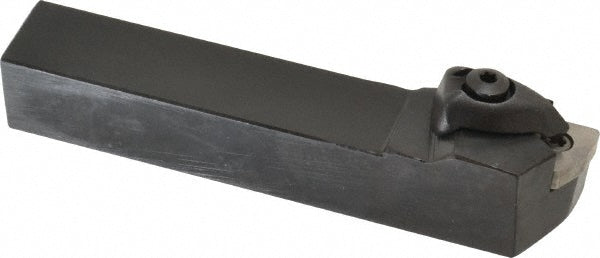

Indexable Turning & Profiling - Seco 02565602
MFR# 02565602Series Clamp Lock
$147.35List $168.48
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02565602 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeWN43/WN44
Complete insert compatibilityWN.. 43..; WNGA; WNGP; WNMA; WNMG; WNMM; WNMP
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3800
Insert compatibilityWN..43.
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle95.0
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleDWLN
