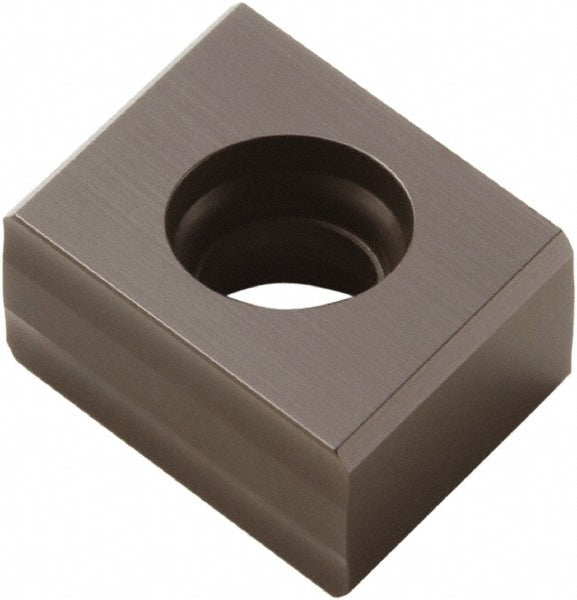

335.18-1005T-M10 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02565979

Seco

335.18-1005T-M10 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02565979

MFR# 02565979ISO/ANSI# 335.18-1005T-M10Cat# 335.18-1005T-M10Series 335.18-10

$46.23List $58.20 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02565979 is a 335.18-1005T-M10 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi code335.18-1005T-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibility335.18-1418
Cutting edge effective length0.3937
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1005
Insert style335.18
Iso code335.18-1005T-M10
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog number335.18-1005T-M10
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Single or double sided insertDouble
StandardsISO
Thickness0.2126
Thickness range0.2000 to 0.2200
Width0.3937
