Seco

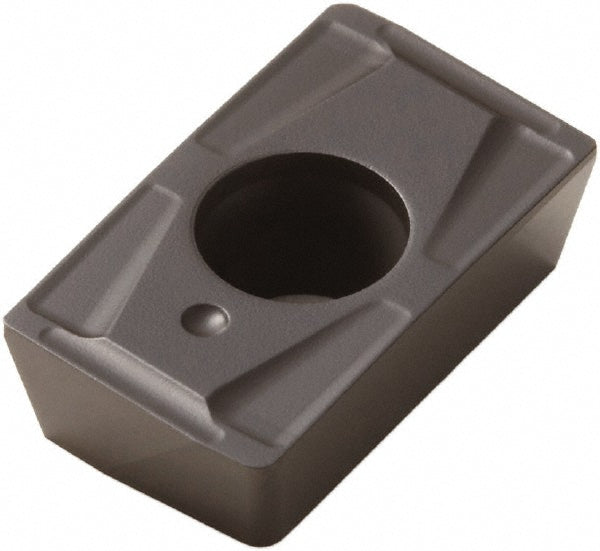

APKT160408TR-D15 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566003
MFR# 02566003ISO/ANSI# APKT160408TR-D15Cat# APKT160408TR-D15Series APKT-16
$33.44List $42.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566003 is a APKT160408TR-D15 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeAPKT160408TR-D15
Chip breakerD15
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleAPKT
Iso codeAPKT160408TR-D15
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT160408TR-D15
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Relief angle11
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
