Seco

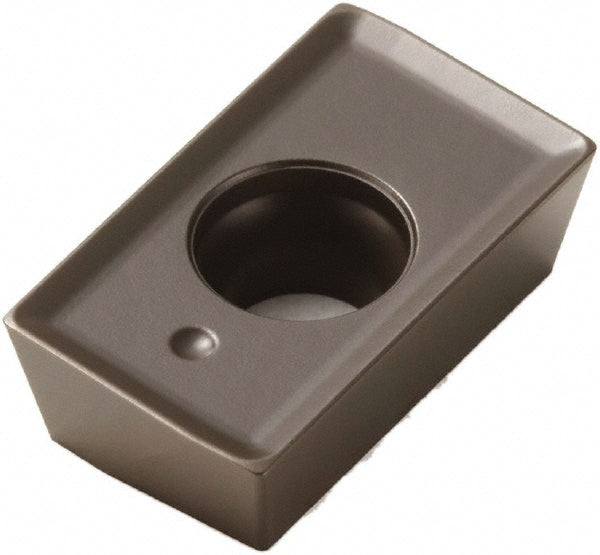

APKT1604PDTR-ME14 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566004
MFR# 02566004ISO/ANSI# APKT1604PDTR-ME14Cat# APKT1604PDTR-ME14Series APKT-16
$33.44List $42.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566004 is a APKT1604PDTR-ME14 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeAPKT1604PDTR-ME14
Chip breakerME14
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT1604PDTR-ME14
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT1604PDTR-ME14
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle24
Relief angle11
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
