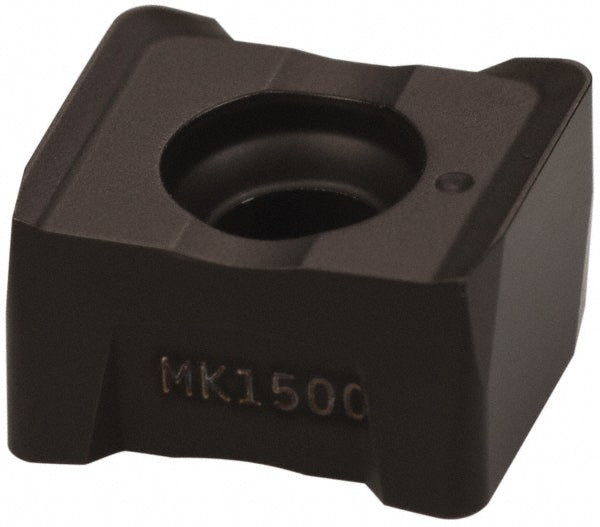

LNKT060508PPTN-M06 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566016
MFR# 02566016ISO/ANSI# LNKT060508PPTN-M06Cat# LNKT060508PPTN-M06Series LNKT-06
$35.37List $43.75
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566016 is a LNKT060508PPTN-M06 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeLNKT060508PPTN-M06
Chip breakerM06
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR335.18
Cutting edge effective length0.2362
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2362
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060508
Insert styleLNKT
Iso codeLNKT060508PPTN-M06
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLNKT060508PPTN-M06
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.2362
