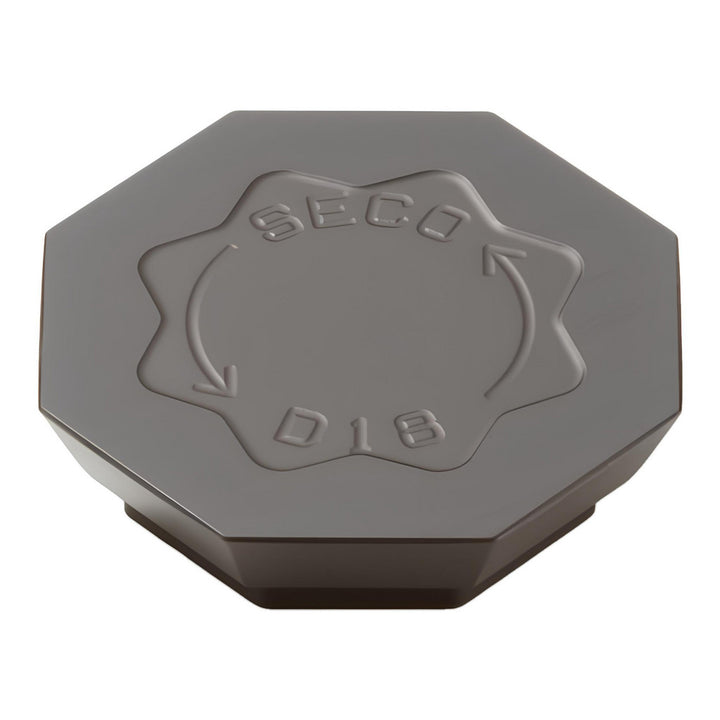

OFEN070405TN-D18 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566028
MFR# 02566028ISO/ANSI# OFEN070405TN-D18Cat# OFEN070405TN-D18Series OFEN-07
$35.62List $45.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566028 is a OFEN070405TN-D18 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeOFEN070405TN-D18
Chip breakerD18
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2917
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7071
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFEN
Iso codeOFEN070405TN-D18
Length0.7071
Length range0.7000 to 0.9000
Manufacturers catalog numberOFEN070405TN-D18
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2756
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle26.00
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.7071
