Seco

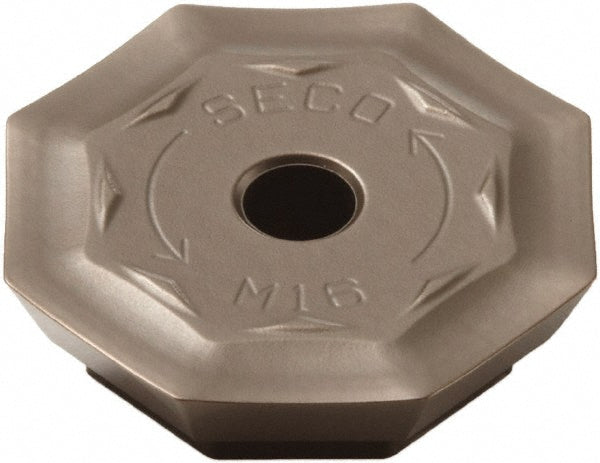

OFER070405TN-M16 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566035
MFR# 02566035ISO/ANSI# OFER070405TN-M16Cat# OFER070405TN-M16Series OFER-07
$36.25List $45.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566035 is a OFER070405TN-M16 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeOFER070405TN-M16
Chip breakerM16
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2921
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFER
Iso codeOFER070405TN-M16
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFER070405TN-M16
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle26
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
