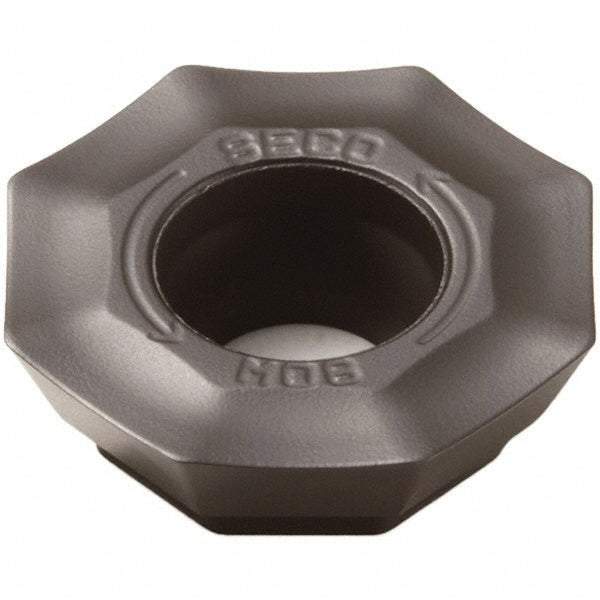

OFEX05T305TN-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566037

Seco

OFEX05T305TN-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566037

MFR# 02566037ISO/ANSI# OFEX05T305TN-M08Cat# OFEX05T305TN-M08Series OFEX-05

$28.63List $36.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02566037 is a OFEX05T305TN-M08 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeOFEX05T305TN-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305TN-M08
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305TN-M08
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle26
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
