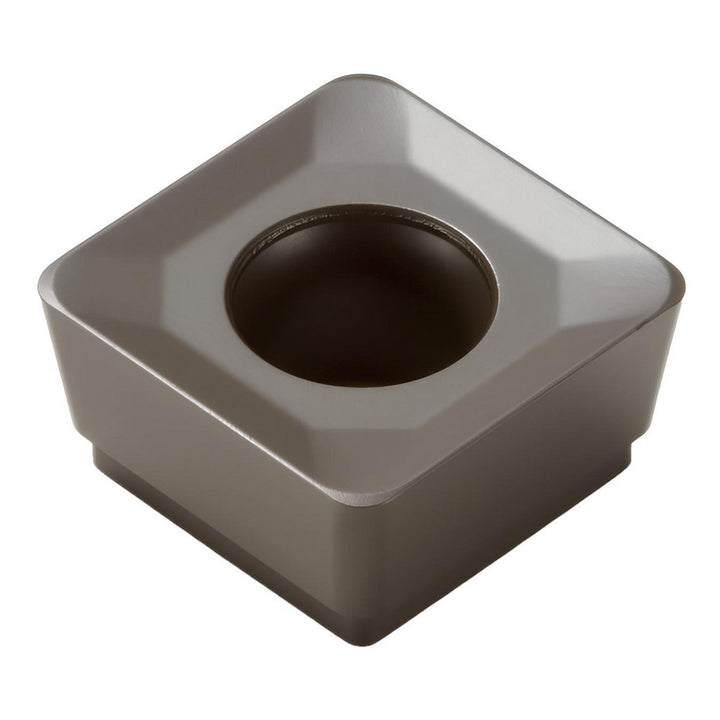

SCET120612T-M14 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566055

Seco

SCET120612T-M14 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566055

MFR# 02566055ISO/ANSI# SCET120612T-M14Cat# SCET120612T-M14Series SCET-12

$36.63List $46.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02566055 is a SCET120612T-M14 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeSCET120612T-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityR217.59-12; R220.59-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120612
Insert styleSCET
Iso codeSCET120612T-M14
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSCET120612T-M14
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.4528
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle15
Relief angle7.00
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
