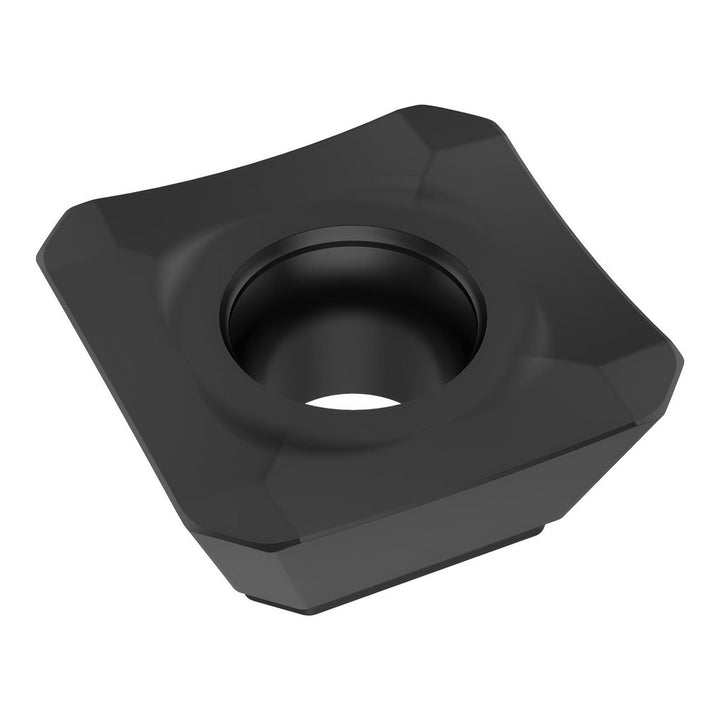

SEEX09T3AFTN-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566062

Seco

SEEX09T3AFTN-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566062

MFR# 02566062ISO/ANSI# SEEX09T3AFTN-M08Cat# SEEX09T3AFTN-M08Series SEEX-09

$20.71List $26.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02566062 is a SEEX09T3AFTN-M08 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeSEEX09T3AFTN-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFTN-M08
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFTN-M08
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle20.00
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
