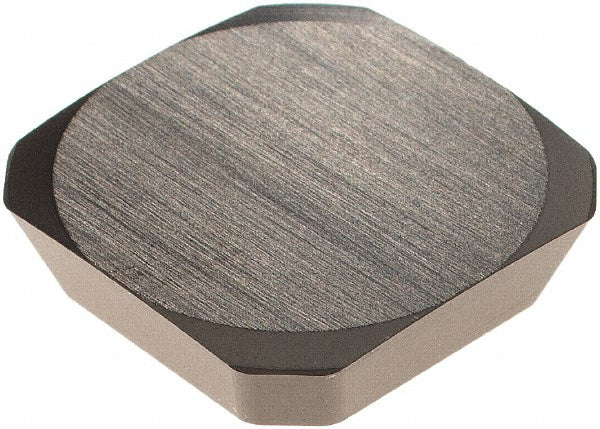

SEEX1203AFTN-MD14 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566063
MFR# 02566063ISO/ANSI# SEEX1203AFTN-MD14Cat# SEEX1203AFTN-MD14Series SEEX-12
$33.18List $41.81
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566063 is a SEEX1203AFTN-MD14 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeSEEX1203AFTN-MD14
Chip breakerMD14
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5028
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.5028
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1203
Insert styleSEEX
Iso codeSEEX1203AFTN-MD14
Length0.5028
Length range0.5000 to 0.6000
Manufacturers catalog numberSEEX1203AFTN-MD14
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.0866
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle20
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.5028
