Seco

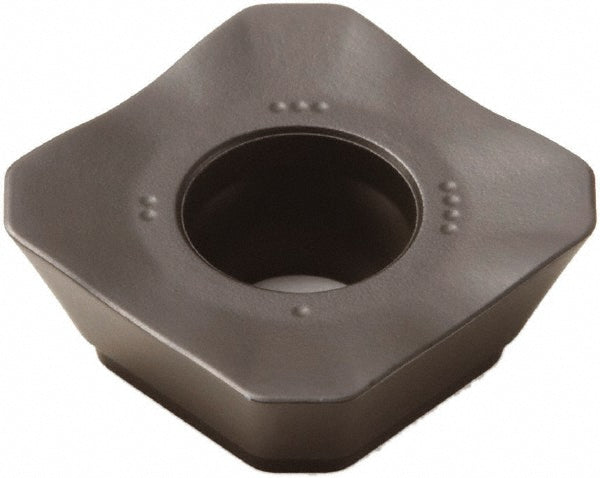

SEMX1204AFTN-M15 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566282
MFR# 02566282ISO/ANSI# SEMX1204AFTN-M15Cat# SEMX1204AFTN-M15Series SEMX-12
$22.91List $29.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566282 is a SEMX1204AFTN-M15 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeSEMX1204AFTN-M15
Chip breakerM15
Coating finishTiCN
Coating processCVD
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEMX
Iso codeSEMX1204AFTN-M15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMX1204AFTN-M15
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle4
Relief angle20
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
