Seco

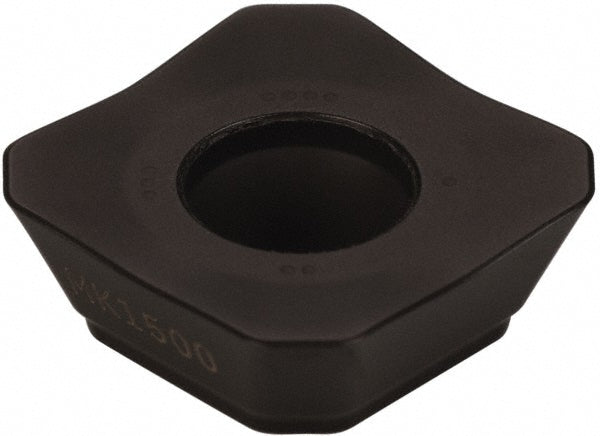

SEMX1505AFTN-M18 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566285
MFR# 02566285ISO/ANSI# SEMX1505AFTN-M18Cat# SEMX1505AFTN-M18Series SEMX-15
$28.63List $36.08
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566285 is a SEMX1505AFTN-M18 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeSEMX1505AFTN-M18
Chip breakerM18
Coating finishTiCN
Coating processCVD
Corner radius0.0591
Cutter series compatibilityR220.53-15
Cutting edge effective length0.6248
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleSEMX
Iso codeSEMX1505AFTN-M18
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEMX1505AFTN-M18
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.4055
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle5
Relief angle20
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
