Seco

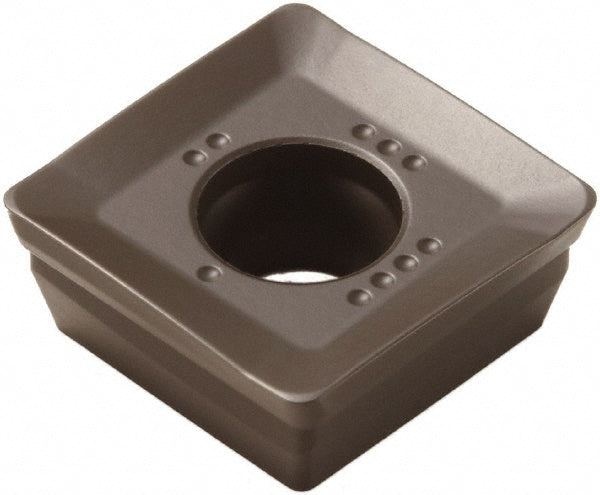

SONX120508TR-M12 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566302
MFR# 02566302ISO/ANSI# SONX120508TR-M12Cat# SONX120508TR-M12Series SONX-12
$25.68List $32.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566302 is a SONX120508TR-M12 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeSONX120508TR-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220.99-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleSONX
Iso codeSONX120508TR-M12
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSONX120508TR-M12
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.4331
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Rake angle16
Relief angle15
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in13/64
Thickness range0.2000 to 0.2200
Width in1/2
