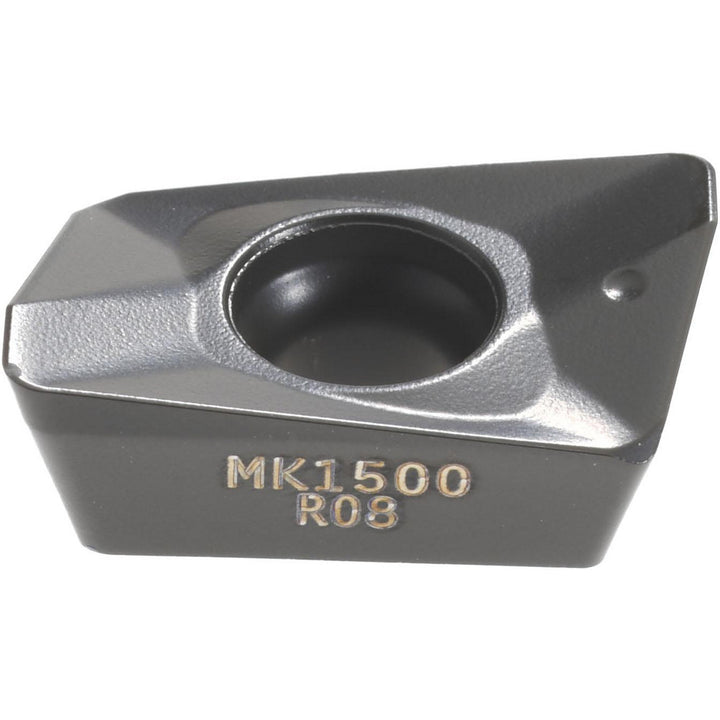

XOMX120408TR-M12 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566325

Seco

XOMX120408TR-M12 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566325

MFR# 02566325ISO/ANSI# XOMX120408TR-M12Cat# XOMX120408TR-M12Series XOMX-12

$25.19List $32.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02566325 is a XOMX120408TR-M12 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeXOMX120408TR-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-M12
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120408TR-M12
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle10.4
Relief angle15.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
