Seco

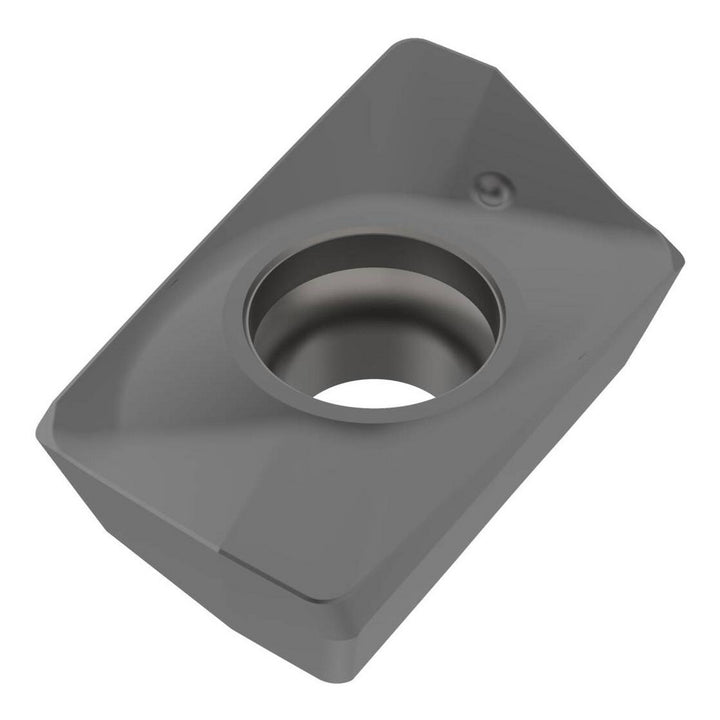

XOMX180608TR-D16 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566329
MFR# 02566329ISO/ANSI# XOMX180608TR-D16Cat# XOMX180608TR-D16Series XOMX-18
$32.84List $42.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566329 is a XOMX180608TR-D16 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeXOMX180608TR-D16
Chip breakerD16
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-D16
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608TR-D16
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle11
Relief angle15.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
