Seco

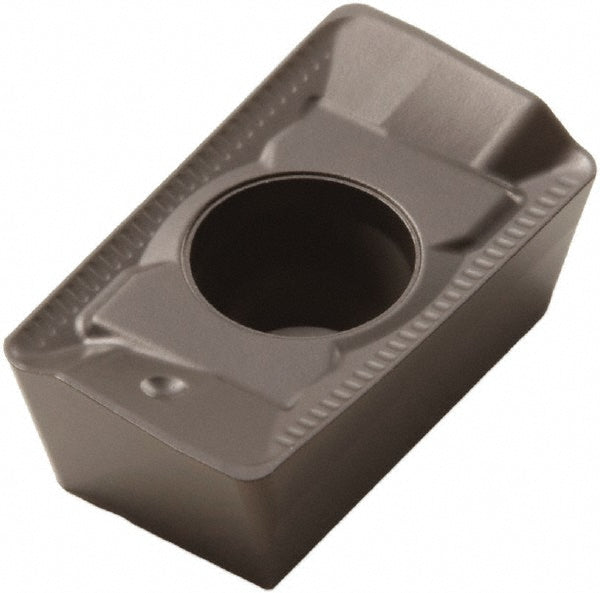

APKX1604PDR-ME12 Solid Carbide Insert, Grade MP2500, TiCN - Seco 02566505
MFR# 02566505ISO/ANSI# APKX1604PDR-ME12Cat# APKX1604PDR-ME12Series APKX-16
$33.44List $42.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeMP2500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02566505 is a APKX1604PDR-ME12 solid carbide indexable insert, grade MP2500, TiCN coated. Suited for steel.
Specifications
Ansi codeAPKX1604PDR-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKX
Iso codeAPKX1604PDR-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX1604PDR-ME12
Manufacturer gradeMP2500
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width in3/8
