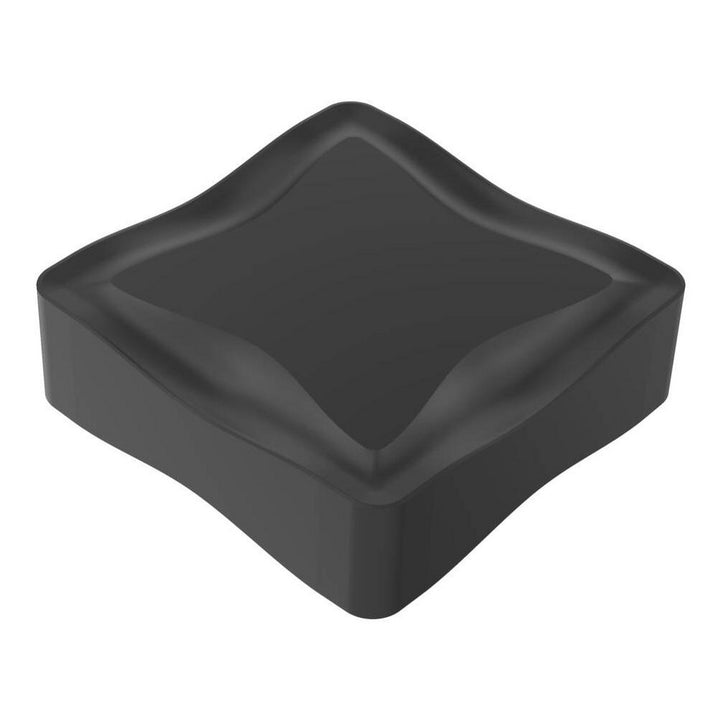

SNHF150412TN-M14 Solid Carbide Insert, Grade MK3000, TiCN - Seco 02567219

Seco

SNHF150412TN-M14 Solid Carbide Insert, Grade MK3000, TiCN - Seco 02567219

MFR# 02567219ISO/ANSI# SNHF150412TN-M14Cat# SNHF150412TN-M14Series SNHF-15

$37.64List $48.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeMK3000
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02567219 is a SNHF150412TN-M14 solid carbide indexable insert, grade MK3000, TiCN coated. Suited for cast iron.

Specifications

Ansi codeSNHF150412TN-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge effective length0.6248
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code150412
Insert styleSNHF
Iso codeSNHF150412TN-M14
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSNHF150412TN-M14
Manufacturer gradeMK3000
Material applicationCast Iron
Material gradeMedium Grain
Maximum depth of cut0.5709
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0.00
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
