Seco

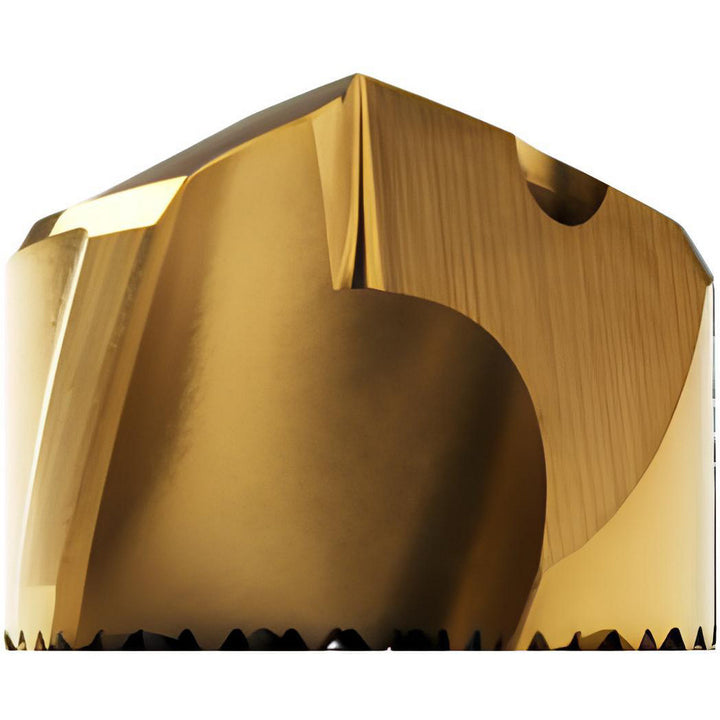

Carbide Insert, Grade UNSPEC, TiAlN - Seco 02569177
MFR# 02569177Series Crownloc
$195.18List $207.36
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeUNSPEC
CoatingTiAlN
Description
The Seco 02569177 is a carbide indexable insert, grade UNSPEC, TiAlN coated. Suited for steel, cast iron.
Specifications
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.8071
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4511
Height0.5984
Included angle degree140
Insert geometryK
Insert holding methodClamp
Iso numberSD100-20.50-K
Manufacturer gradeUNSPEC
Number of flutes2
Overall length projection0.5980
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleCrownloc
Tip materialSolid Carbide
