Seco

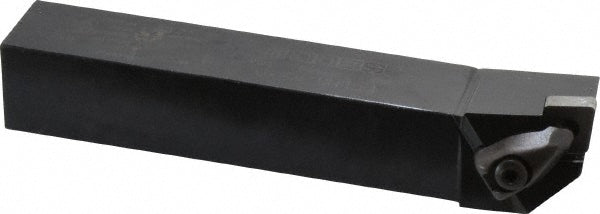

Indexable Turning & Profiling - Seco 02569284
MFR# 02569284Series Clamp Lock
$154.91List $177.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02569284 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCN43
Complete insert compatibilityCN.. 43..; CNGA; CNGR; CNMA; CNMG; CNMM; CNMP
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3000
Insert compatibilityCN..43.
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle95.0
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDCLN
