Seco

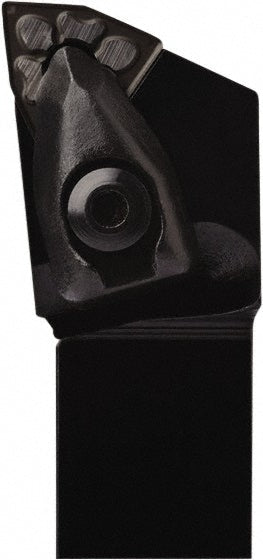

Indexable Turning & Profiling - Seco 02569287
MFR# 02569287Series Dual Clamp
$154.91List $177.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02569287 indexable turning & profiling. Suited for universal. Series Dual Clamp.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeWN43/WN44
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.3800
Insert compatibilityWNMG 432
Insert holding methodClamp
Insert inscribed circle in1/2
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
Toolholder styleDWLN
