Seco

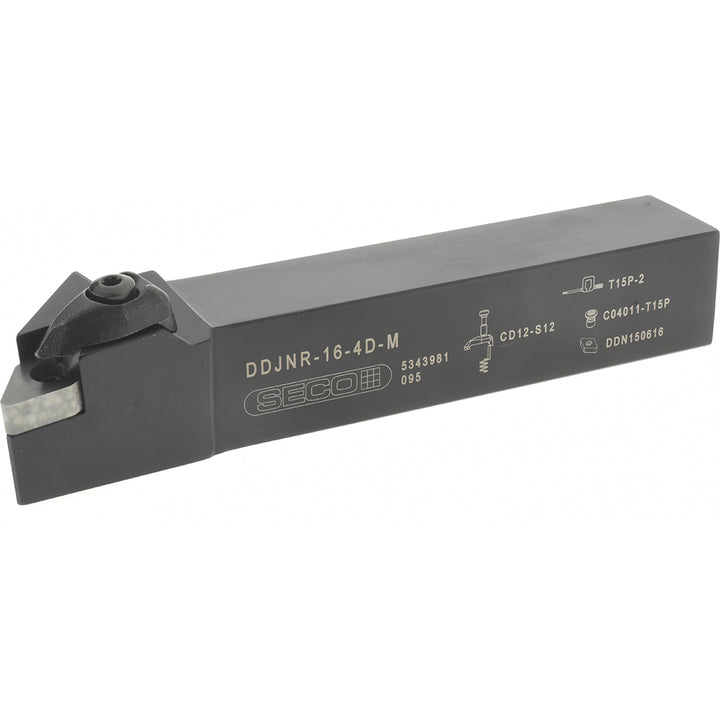

Indexable Turning & Profiling - Seco 02569288
MFR# 02569288Series Dual Clamp
$154.91List $177.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02569288 indexable turning & profiling. Suited for universal. Series Dual Clamp.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeDN43/DN44
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.6500
Insert compatibilityDNMG 432
Insert holding methodClamp
Insert inscribed circle in3/8
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
Toolholder materialSteel
Toolholder styleDDJN
