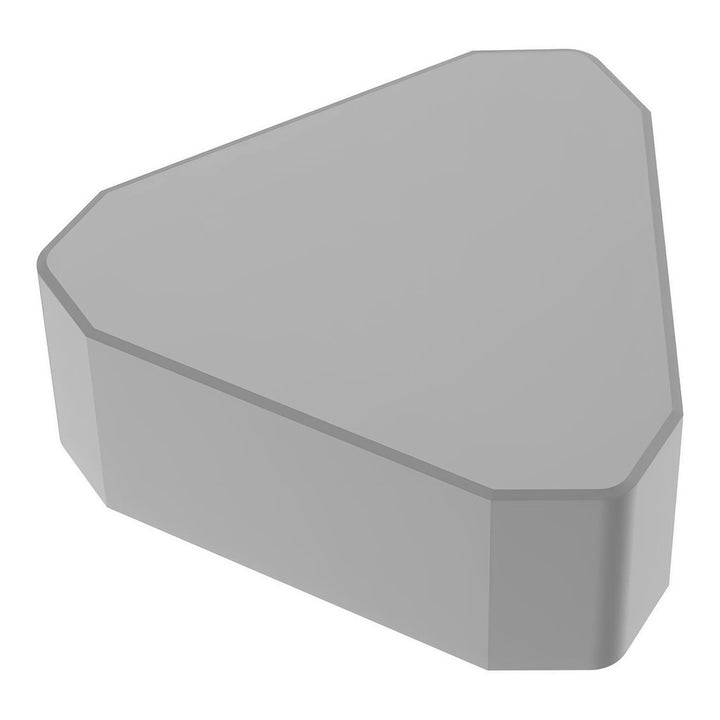

TNGN1604PNS PCBN Insert, Grade CBN200 - Seco 02573306
MFR# 02573306ISO/ANSI# TNGN1604PNSCat# TNGN1604PNSSeries TNGN-16
$375.98
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCBN200
MaterialPCBN
Description
The Seco 02573306 is a TNGN1604PNS pcbn indexable insert, grade CBN200. Suited for cast iron.
Specifications
Ansi codeTNGN1604PNS
Chip breakerNone
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR220.68-16
Cutting edge effective length0.6495
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialPCBN
Insert shapeTriangle
Insert size16
Insert size code1604
Insert styleTNGN
Iso codeTNGN1604PNS
Length0.6495
Length range0.6000 to 0.6500
Manufacturers catalog numberTNGN1604PNS
Manufacturer gradeCBN200
Material applicationCast Iron; Hard Material
Material grade85% CBN
Maximum depth of cut0.1949
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0.00
Secondary workpiece materialHard Material
ShapeTriangle
Single or double sided insertDouble
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.6495
