Seco

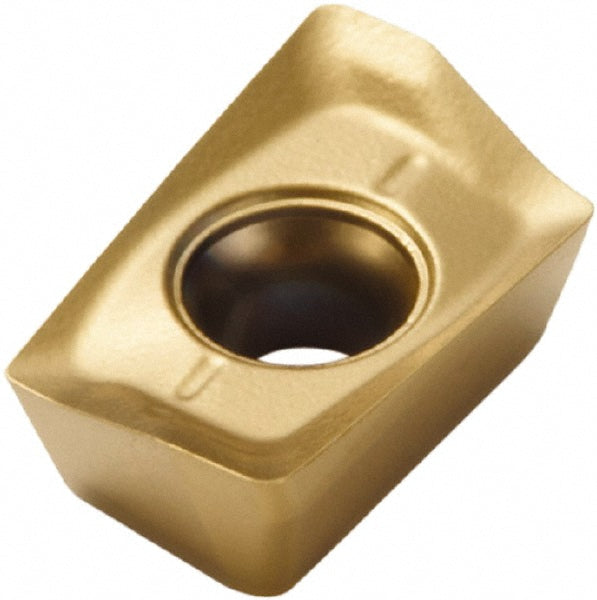

LNKT050404PPN4-E05 Solid Carbide Insert, Grade H25 - Seco 02575294
MFR# 02575294ISO/ANSI# LNKT050404PPN4-E05Cat# LNKT050404PPN4-E05Series LNKT-05
$25.31List $31.86
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeH25
MaterialSolid Carbide
Description
The Seco 02575294 is a LNKT050404PPN4-E05 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeLNKT050404PPN4-E05
Chip breakerE05
Coating processUncoated
Corner radius in1/64
Cutter series compatibility335.18
Cutting edge effective length0.1969
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code050404
Insert styleLNKT
Iso codeLNKT050404PPN4-E05
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLNKT050404PPN4-E05
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle23
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.1850
Thickness range0.1850 to 0.2000
Width0.1969
