Seco

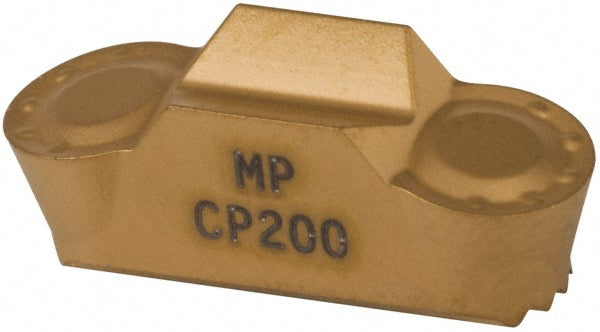

Solid Carbide Insert, Grade CP200, Coated - Seco 02575422
MFR# 02575422Series MDT
$54.32List $69.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP200
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02575422 is a solid carbide indexable insert, grade CP200, Coated coated. Suited for superalloy, titanium.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius in1/8
Cutting height0.1770
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.7190
Insert materialSolid Carbide
Insert size code160600
Insert styleLCMF
Manufacturer gradeCP200
Material gradeMicrograin
Maximum cutting width0.2500
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Single or double endDouble
StyleLCMF160600-A250-MP
