Seco

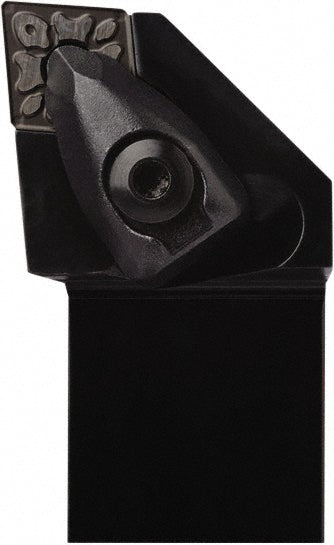

Indexable Turning & Profiling - Seco 02588893
MFR# 02588893Series Dual Clamp
$208.76List $238.68
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02588893 indexable turning & profiling. Suited for universal. Series Dual Clamp.
Specifications
Back of bar to cutting edge1.5000
Compatible insert size codeCN43
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3000
Insert compatibilityCNMG 432
Insert holding methodClamp
Insert inscribed circle in1/2
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height1.2500
Shank width1.2500
Toolholder styleDCLN
