Seco

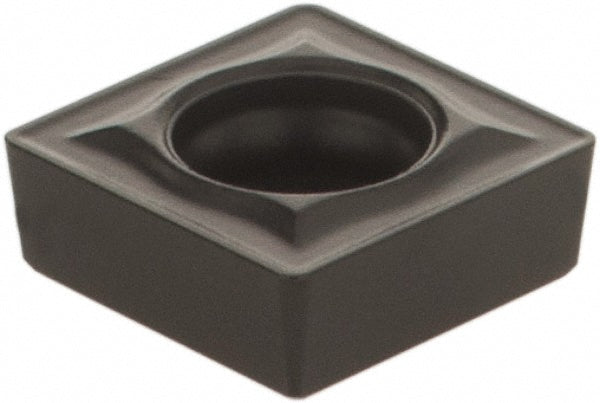

0.2500" IC Solid Carbide Insert, Grade DP2000, Coated - Seco 02590855
MFR# 02590855Series Perfomax
$21.64List $27.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP2000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02590855 is a solid carbide indexable insert, grade DP2000, Coated coated. Suited for cast iron, steel.
Specifications
ChipbreakerP2
Coating finishCoated
Coating processDuratomic
Corner radius0.0157
Included angle degree90
Inscribed circle0.2500
Insert materialSolid Carbide
Insert size060204
Insert size code06
Insert styleSCGX
Length0.2500
Manufacturer gradeDP2000
Material gradeC6
Primary workpiece materialCast Iron; Steel
Relief angle7
ShapeSquare
Thickness0.0937
Width0.2500
