Seco
0.5000" IC Carbide Insert, Grade DP2000, TiCN - Seco 02590858
MFR# 02590858Series Perfomax
$29.80List $38.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP2000
MaterialCarbide
CoatingTiCN
Description

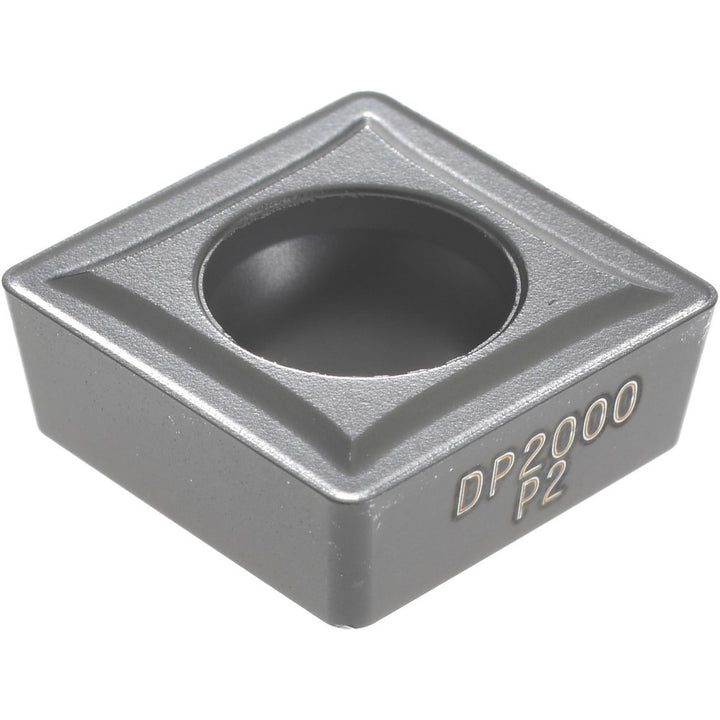

The Seco 02590858 is a carbide indexable insert, grade DP2000, TiCN coated. Suited for cast iron, steel.
Specifications
ChipbreakerP2
Coating finishTiCN
Coating processDuratomic
Corner radius0.0315
Included angle degree90
Inscribed circle0.5000
Insert materialCarbide
Insert size120408
Insert size code12
Insert styleSCGX
Length0.5
Manufacturer gradeDP2000
Material gradeC6
Primary workpiece materialCast Iron; Steel
Relief angle7
ShapeSquare
Thickness0.1874
Width0.5
