Seco

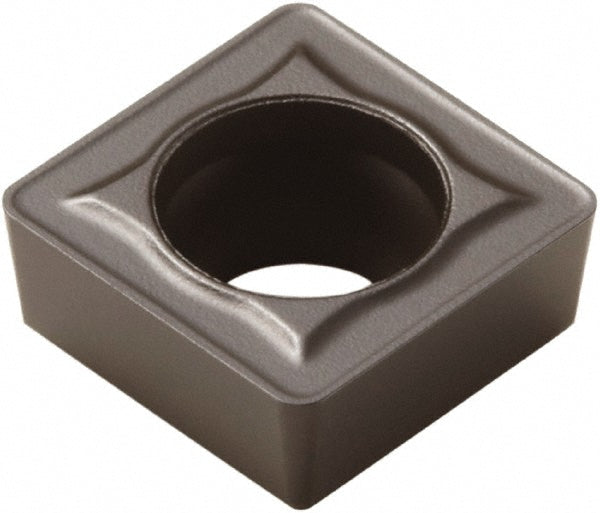

0.6252" IC Solid Carbide Insert, Grade DP2000, Coated - Seco 02590859
MFR# 02590859Series Perfomax
$32.67List $41.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP2000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02590859 is a solid carbide indexable insert, grade DP2000, Coated coated. Suited for cast iron, steel.
Specifications
ChipbreakerP2
Coating finishCoated
Coating processDuratomic
Corner radius0.0472
Hole diameter0.2200
Included angle degree90
Inscribed circle0.6252
Insert materialSolid Carbide
Insert size150512
Insert size code15
Insert styleSCGX
Length0.6250
Manufacturer gradeDP2000
Material gradeC6
Primary workpiece materialCast Iron; Steel
Relief angle7
ShapeSquare
Thickness0.2189
Width0.6250
