Seco

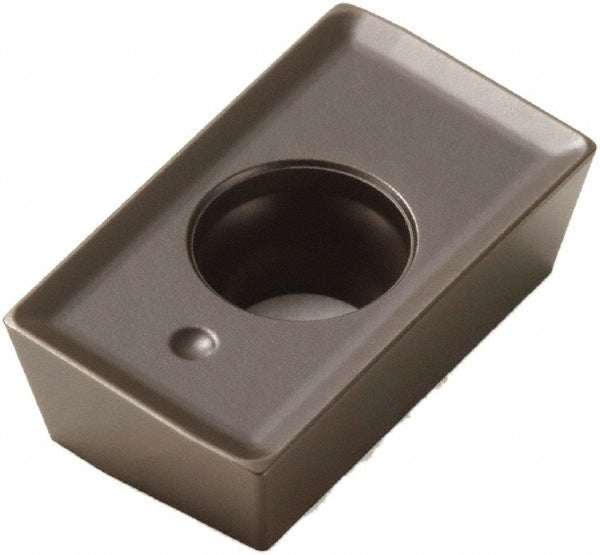

APKT1604PDTR-ME14 Solid Carbide Insert, Grade MP1500, TiCN - Seco 02594117
MFR# 02594117ISO/ANSI# APKT1604PDTR-ME14Cat# APKT1604PDTR-ME14Series APKT-16
$33.44List $42.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeMP1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02594117 is a APKT1604PDTR-ME14 solid carbide indexable insert, grade MP1500, TiCN coated. Suited for steel.
Specifications
Ansi codeAPKT1604PDTR-ME14
Chip breakerME14
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKT
Iso codeAPKT1604PDTR-ME14
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT1604PDTR-ME14
Manufacturer gradeMP1500
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialCast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
