Seco

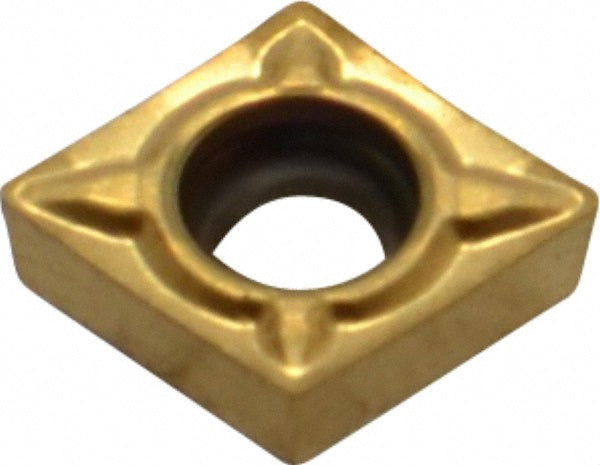

CCMT060202-F1 Carbide Insert, Grade TS2000, TiAlN - Seco 02614299
MFR# 02614299ISO/ANSI# CCMT21.50.5-F1Series CCMT-F1
$15.24List $19.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02614299 is a CCMT060202-F1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202-F1
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02614299
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
