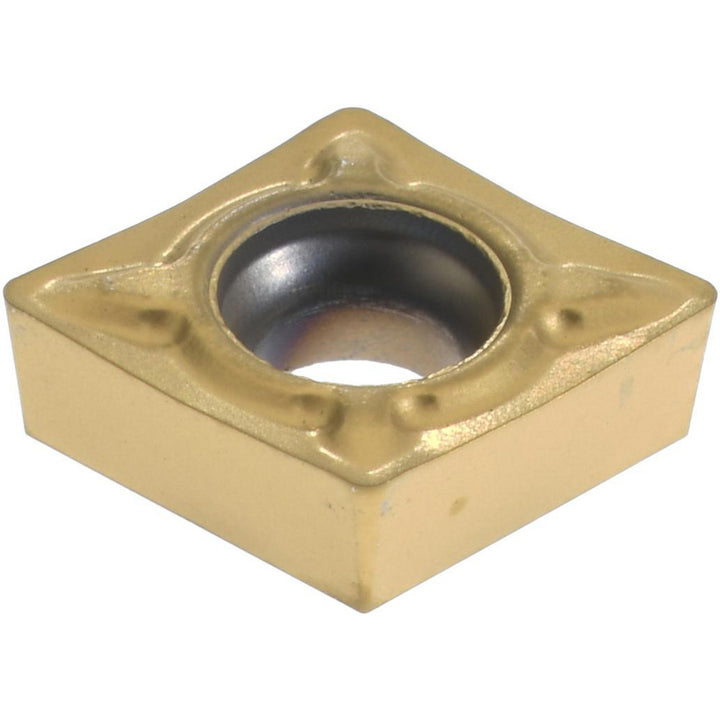

CCMT060204-F1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615873

Seco

CCMT060204-F1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615873

MFR# 02615873ISO/ANSI# CCMT060204Series CCMT-F1

$13.39List $17.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTS2000
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615873 is a CCMT060204-F1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204-F1
Iso insert codeCCMT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number02615873
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.2362
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Hard Material
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
