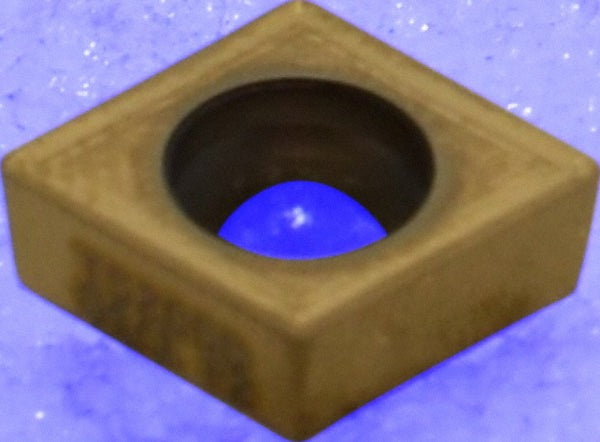

CCMT09T304-F2 Carbide Insert, Grade TS2000, TiAlN - Seco 02615875

Seco

CCMT09T304-F2 Carbide Insert, Grade TS2000, TiAlN - Seco 02615875

MFR# 02615875ISO/ANSI# CCMT32.51-F2Series CCMT-F2

$15.58List $19.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTS2000
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615875 is a CCMT09T304-F2 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-F2
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02615875
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
