Seco

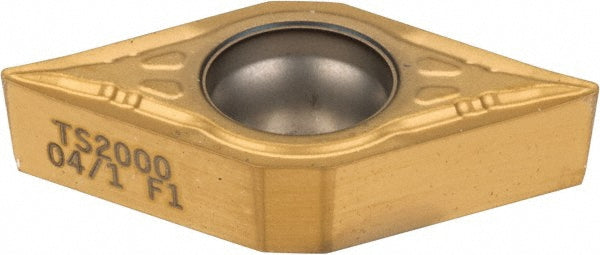

DCMT11T304-F1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615881
MFR# 02615881ISO/ANSI# DCMT32.51-F1Series DCMT-F1
$18.02List $23.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615881 is a DCMT11T304-F1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615881
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
