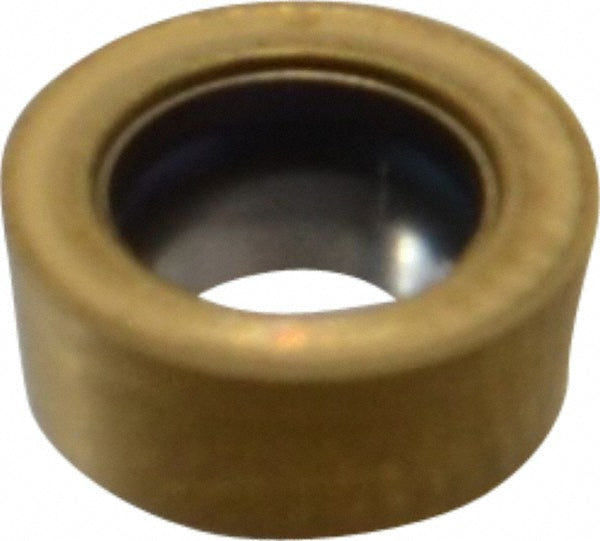

RCMT0602M0-F2 Carbide Insert, Grade TS2000, TiAlN - Seco 02615884

Seco

RCMT0602M0-F2 Carbide Insert, Grade TS2000, TiAlN - Seco 02615884

MFR# 02615884ISO/ANSI# RCMT0602M0-F2Series RCMT-F2

$11.79List $15.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeTS2000
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615884 is a RCMT0602M0-F2 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerF2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting edge styleHoned
Full radiusYes
Hole diameter0.1142
Included angle360degree
Industry standard numberRCMT0602M0-F2
Inscribed circle0.2362
Insert handNeutral
Insert holding methodScrew
Insert length0.2362
Insert materialCarbide
Insert shapeRound
Insert size code0602M0
Insert styleRCMT
Insert thickness in3/32
Iso codeRCMT0602M0-F2
Lead angle360degree
Length range0.0000 - 0.3000
Manufacturers catalog number02615884
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.1181
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width0.2362in
Wiper edgeNo
