Seco

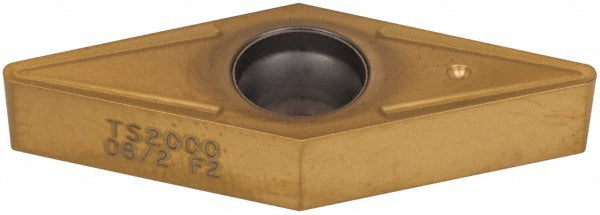

VBMT160408-F2 Carbide Insert, Grade TS2000, TiAlN - Seco 02615890
MFR# 02615890ISO/ANSI# VBMT332-F2Series VBMT-F2
$25.02List $32.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615890 is a VBMT160408-F2 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerF2
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT332-F2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-F2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615890
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
