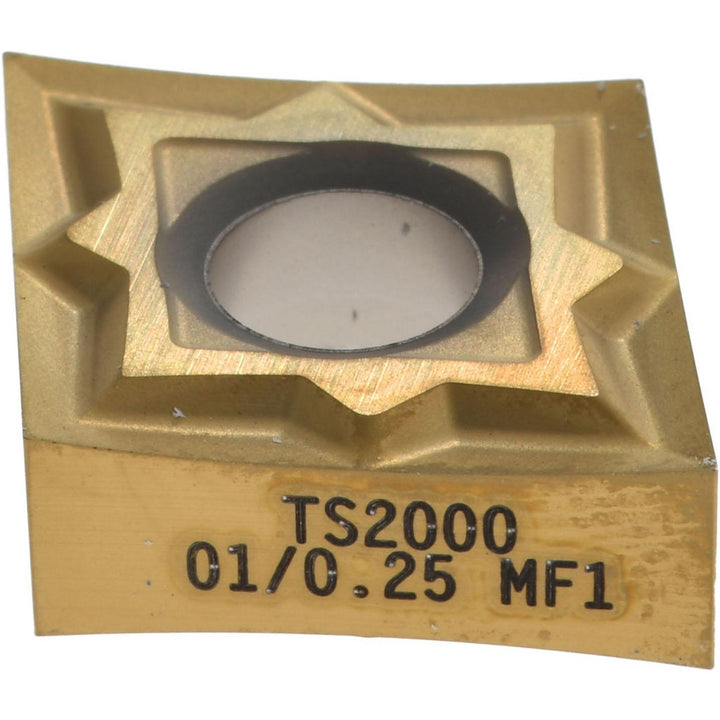

CNGG120401-MF1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615891

Seco

CNGG120401-MF1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615891

MFR# 02615891ISO/ANSI# CNGP120401Series CNGP-MF1

$29.39List $37.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTS2000
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615891 is a CNGG120401-MF1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNGP430
Ansi size code430
Chip breakerMF1
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.2028
Included angle80
Industry standard numberCNGP430-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code430
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGG120401-MF1
Iso insert codeCNGP120401
Iso size code120401
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02615891
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.5039
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
