Seco

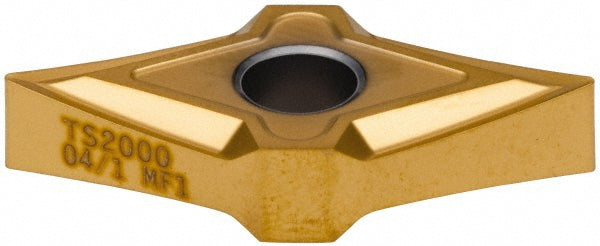

DNMG150404-MF1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615901
MFR# 02615901ISO/ANSI# DNMP431-MF1Series DNMP-MF1
$24.84List $31.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615901 is a DNMG150404-MF1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMP
Insert thickness in3/16
Iso codeDNMG150404-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615901
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
