Seco

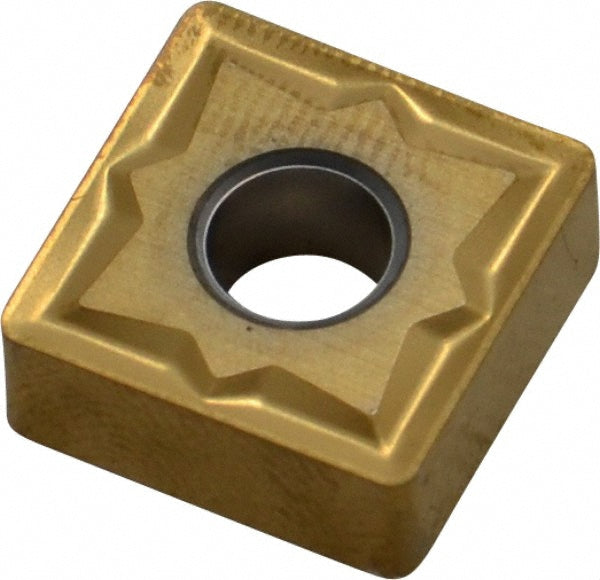

SNMG120408-MR3 Carbide Insert, Grade TS2000, TiAlN - Seco 02615909
MFR# 02615909ISO/ANSI# SNMG432-MR3Series SNMG-MR3
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615909 is a SNMG120408-MR3 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMR3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle90degree
Industry standard numberSNMG432-MR3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408-MR3
Lead angle90degree
Length range0.5000 - 0.6000
Manufacturers catalog number02615909
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.4685
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
