Seco

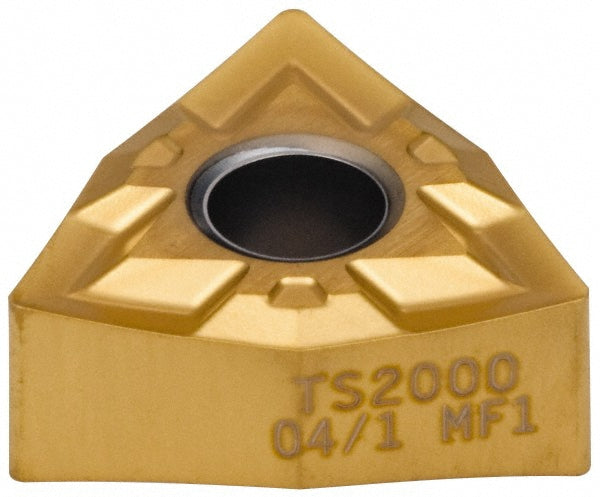

WNMG060404-MF1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615920
MFR# 02615920ISO/ANSI# WNMP331-MF1Series WNMP-MF1
$17.62List $22.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615920 is a WNMG060404-MF1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMP331-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG060404-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02615920
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.2480
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
