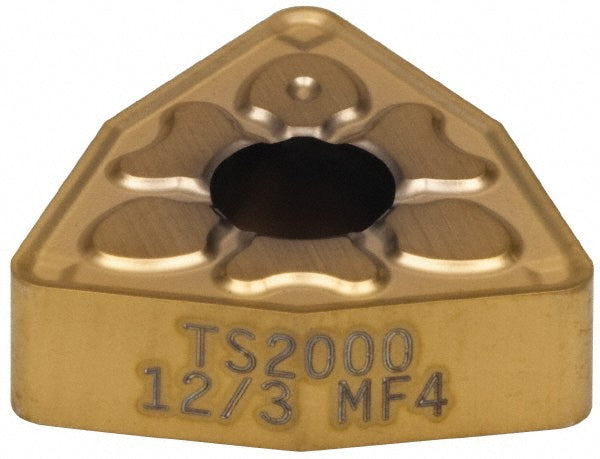

WNMG080412-MF4 Carbide Insert, Grade TS2000, TiAlN - Seco 02615930
MFR# 02615930ISO/ANSI# WNMG433-MF4Series WNMG-MF4
$21.55List $27.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615930 is a WNMG080412-MF4 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG433-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-MF4
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02615930
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.3228
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
