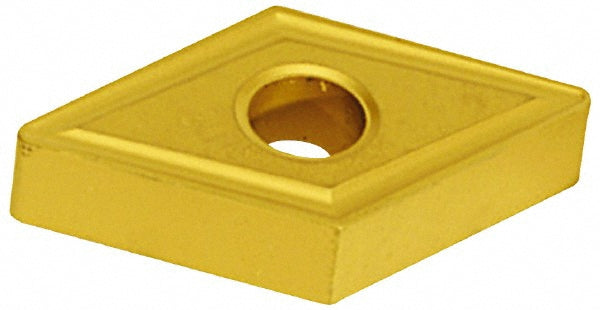

DNMG150612-MF4 Carbide Insert, Grade TS2000, TiAlN - Seco 02615938

Seco

DNMG150612-MF4 Carbide Insert, Grade TS2000, TiAlN - Seco 02615938

MFR# 02615938ISO/ANSI# DNMG443-MF4Series DNMG-MF4

$26.77List $34.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTS2000
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615938 is a DNMG150612-MF4 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMF4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG443-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code443
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG150612-MF4
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615938
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.5630
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
