Seco

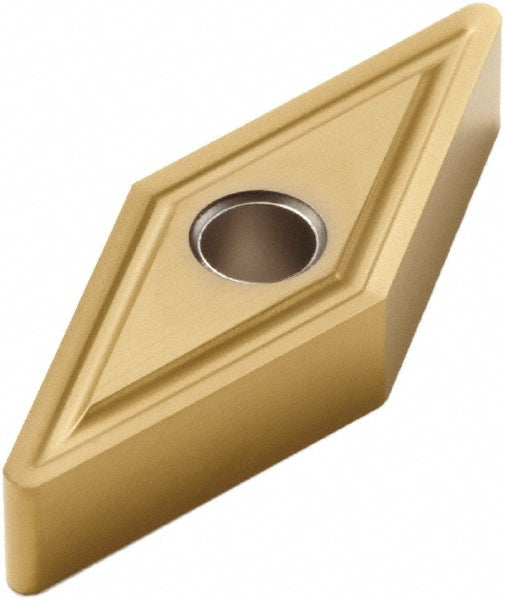

VNGG160404-M1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615951
MFR# 02615951ISO/ANSI# VNGP331-M1Series VNGP-M1
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615951 is a VNGG160404-M1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGP331-M1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGG160404-M1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615951
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
