Seco

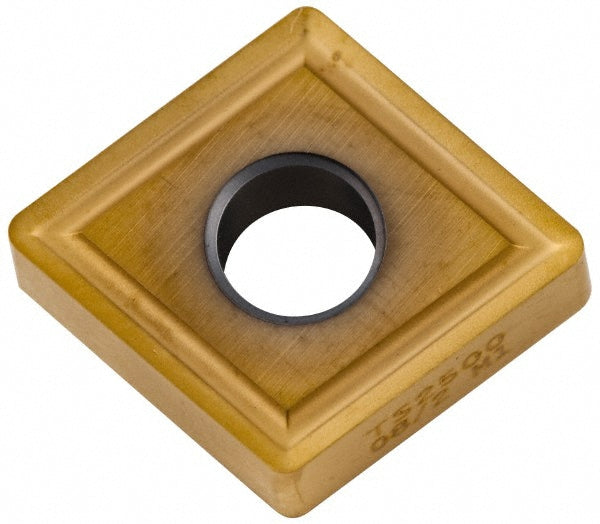

CNMG120408-M1 Carbide Insert, Grade TS2500, TiAlN - Seco 02615955
MFR# 02615955ISO/ANSI# CNMP432-M1Series CNMP-M1
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615955 is a CNMG120408-M1 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMP432-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMP
Insert thickness in3/16
Iso codeCNMG120408-M1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02615955
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
