Seco

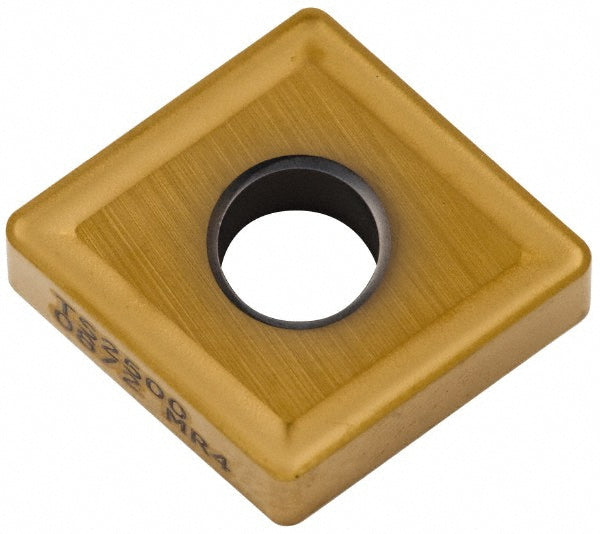

CNMG120408-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615956
MFR# 02615956ISO/ANSI# CNMG432-MR4Series CNMG-MR4
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615956 is a CNMG120408-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MR4
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number02615956
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
