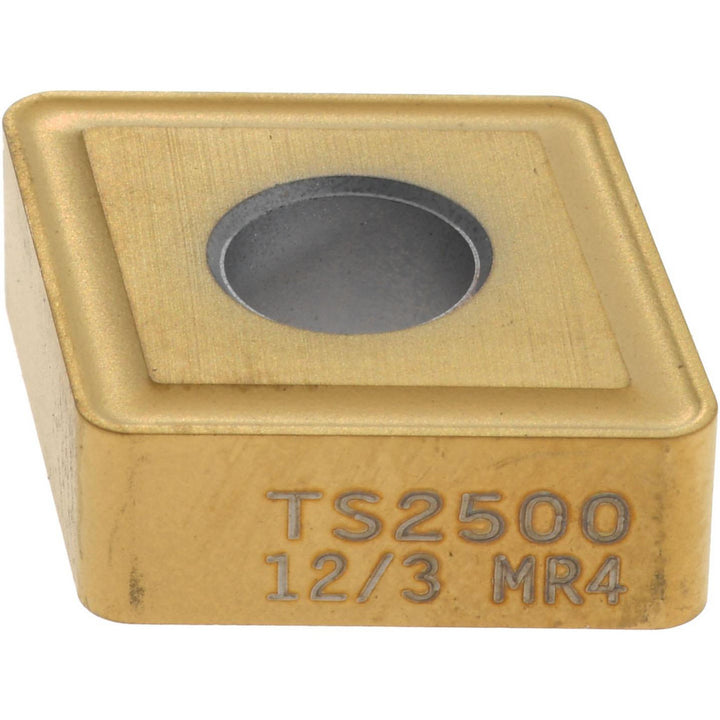

CNMG120412-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615957

Seco

CNMG120412-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615957

MFR# 02615957ISO/ANSI# CNMG120412Series CNMG-MR4

$19.62List $25.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615957 is a CNMG120412-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerMR4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Hole diameter0.2028
Included angle80
Industry standard numberCNMG433-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-MR4
Iso insert codeCNMG120412
Iso size code120412
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02615957
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
