Seco

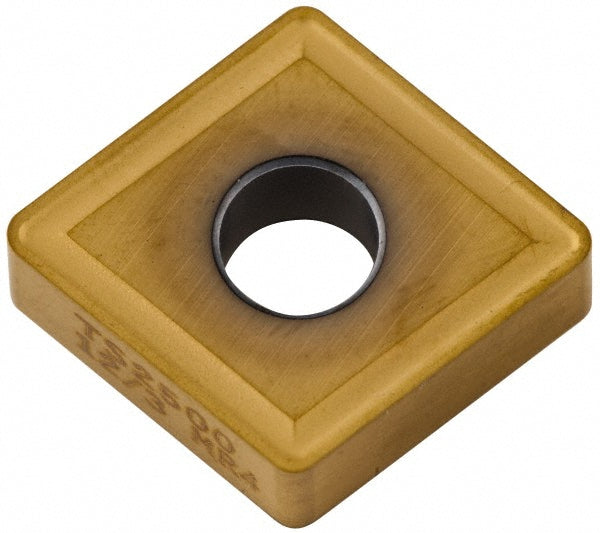

CNMG160612-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615960
MFR# 02615960ISO/ANSI# CNMG543-MR4Series CNMG-MR4
$31.00List $39.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615960 is a CNMG160612-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543-MR4
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-MR4
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number02615960
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.5866
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
