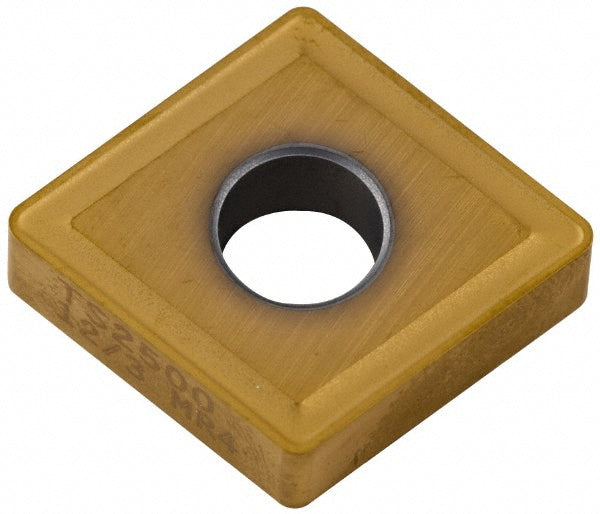

CNMG190612-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615961

Seco

CNMG190612-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615961

MFR# 02615961ISO/ANSI# CNMG643-MR4Series CNMG-MR4

$42.95List $55.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615961 is a CNMG190612-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.3118
Included angle80degree
Industry standard numberCNMG643-MR4
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-MR4
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615961
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.7126
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
