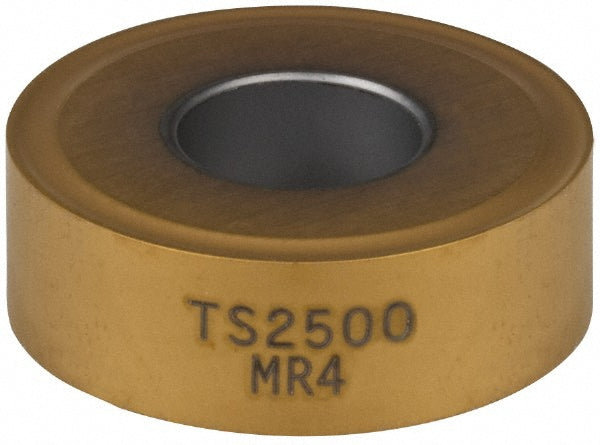

RNMG190600-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615968

Seco

RNMG190600-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615968

MFR# 02615968ISO/ANSI# RNMG64-MR4Series RNMG-MR4

$38.56List $49.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615968 is a RNMG190600-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/8
Cutting edge styleT-Land
Full radiusYes
Hole diameter0.3118
Included angle360degree
Industry standard numberRNMG64-MR4
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeRound
Insert size code64
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG190600-MR4
Lead angle360degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615968
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.3750
Multi use applicationFacing; Profiling; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
