Seco

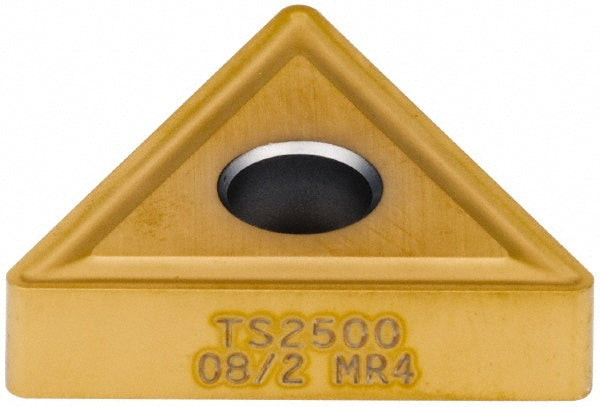

TNMG220408-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615981
MFR# 02615981ISO/ANSI# TNMG432-MR4Series TNMG-MR4
$28.63List $36.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615981 is a TNMG220408-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG432-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MR4
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615981
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
